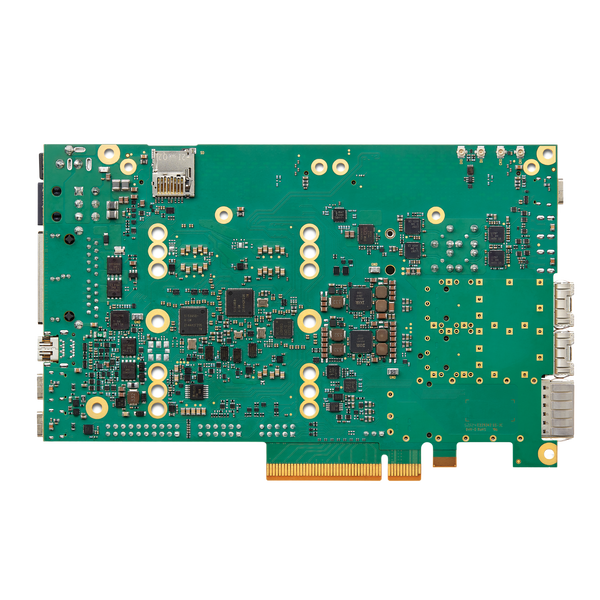

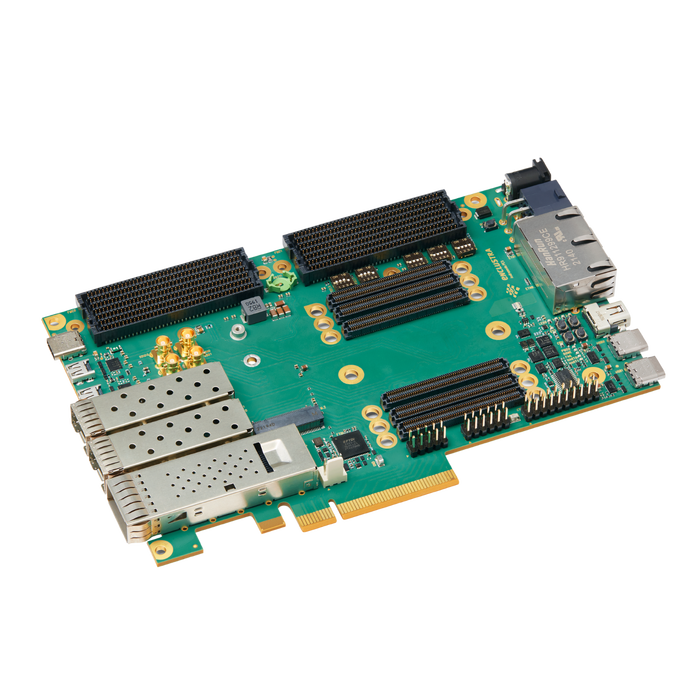

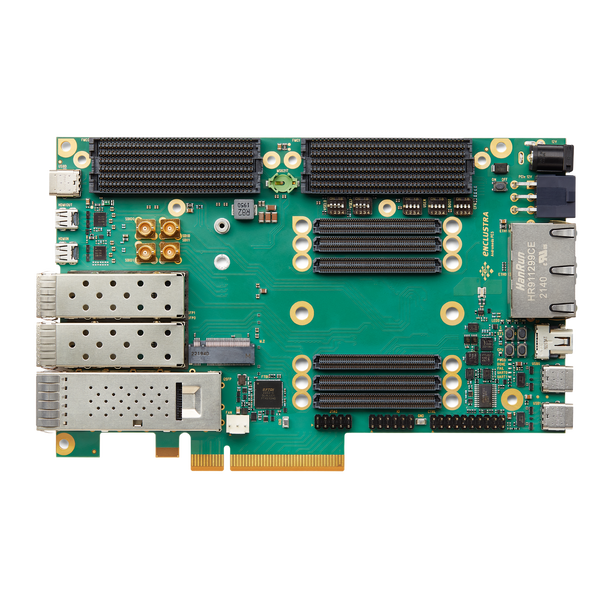

Andromeda PE5

Base Board for Andromeda SoC Modules

Overview

The Andromeda PE5 is a versatile base board equipped with a multitude of I/O interfaces for use with the Andromeda family of SoC modules, providing a head start for building custom SoC based hardware systems. The board is equally well suited for rapid prototyping and for building FPGA systems without designing custom hardware.

Highlights

Compatible with all Andromeda SoC modules except RFSoC modules
Offers PCIe x8, 2 x USB Type-C 3.0
QSFP28/SFP28 interfaces for high-speed communication applications
Suitable for prototype to series production
170 x 111.15 mm with PCIe x8 edge connector
Can also be used as a standalone board (not as PCIe card)

Benefits

High-Speed FPGA and flash programming over USB from a host PC
Provides versatile set of I/O connectivity options, specialized for high-speed communication ( QSFP28/SFP28, PCIe) and video applications (HDMI, SDI, DisplayPort)
2 × FMC+ connectors

Features

6 × Andromeda module connectors
PCIe ×8 edge connector
1 × QSFP28 connector, 2 × SFP28 connectors
2 × USB Type-C connectors
2 × Gigabit Ethernet connectors
2 × Micro HDMI connector (1 × Input, 1 × Output)
4 × SDI (2 × Input, 2 × Output)
Mini DisplayPort connector
M.2 PCIe/SATA slot
2 × FMC+ HSPC connectors
Low-jitter clock generators
microSD slot
FTDI USB 2.0 high-speed device controller
Standalone or PCIe operation
12V single supply or PCIe powered
170 × 111.15 mm (PCB only)
System monitor for monitoring voltages and currents
Fan controller and connector

Please note that the available features depend on the equipped Andromeda SoC module.

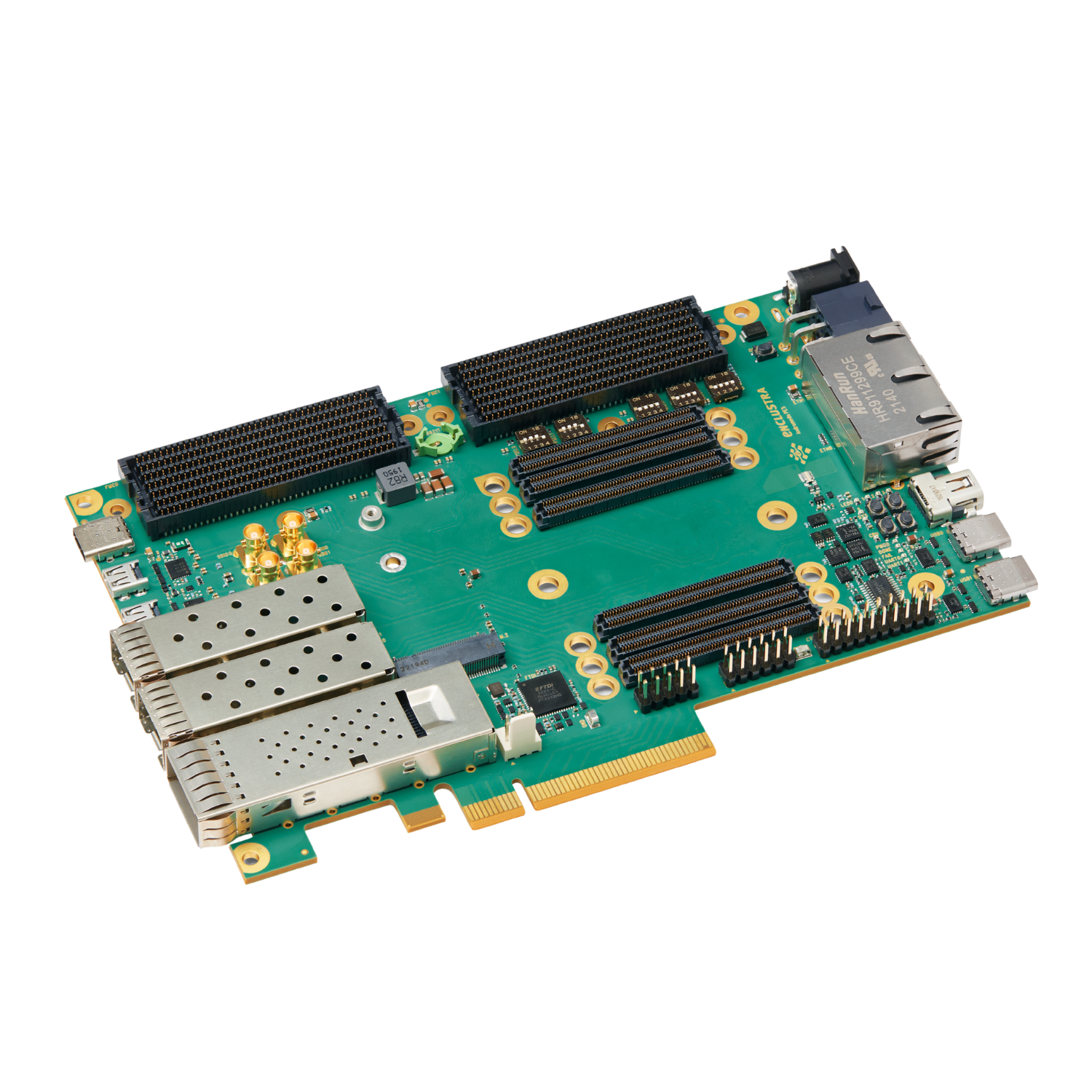

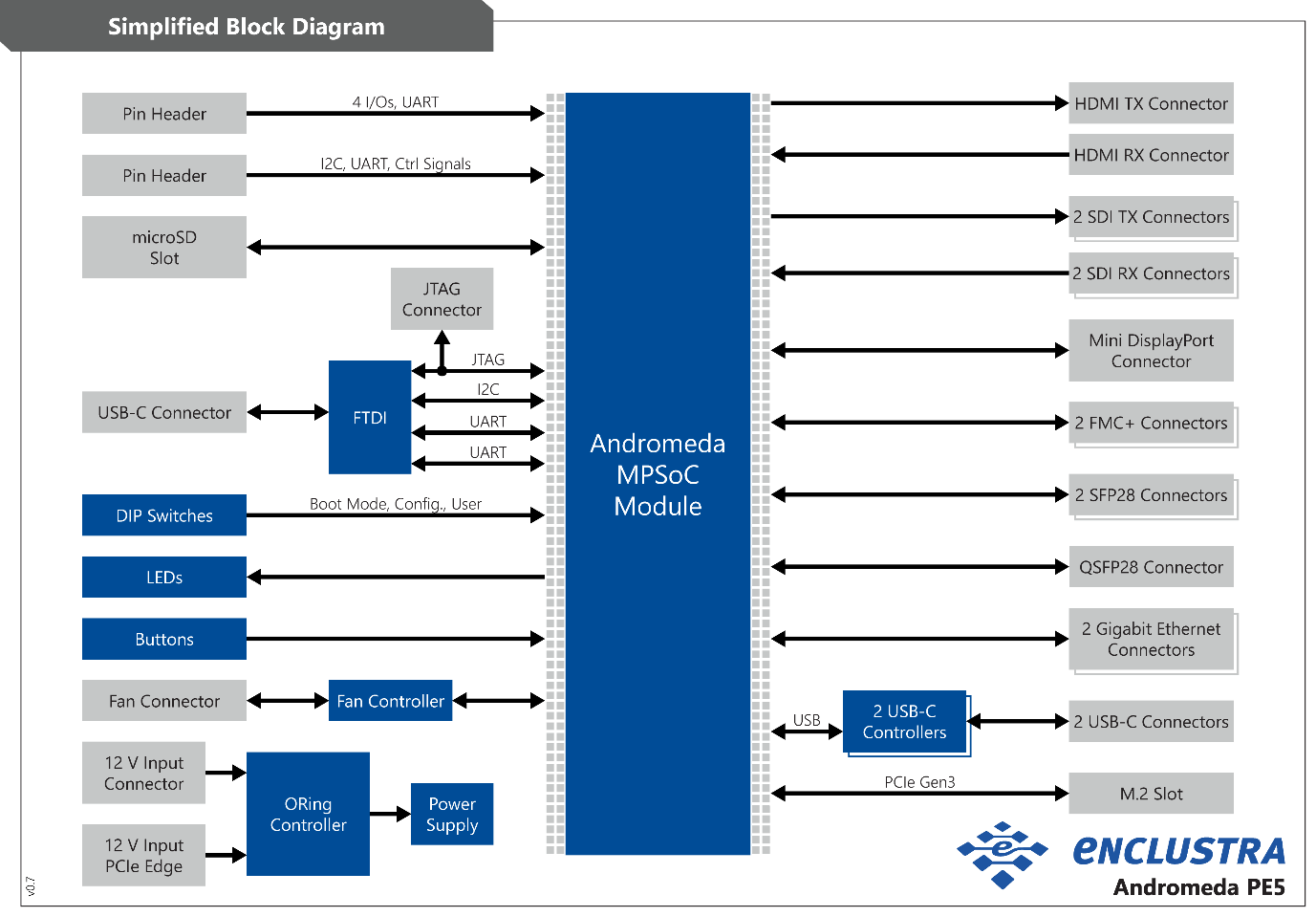

Board Architecture

Click image to enlarge

Product Selection Matrix

Product Code	Temp. Range	Status
AM-PE5-W	-20 to +70C

Key: Mass Production Sampling Contact us

Target Applications

Rapid Prototyping
Industrial Automation
Embedded Computing
Communications
Digital Signal Processing
Motion Control
Medical Testing
