IN DEVELOPMENT
This product is currently in development – for more detailed information on availability, feel free to get in touch.
Overview

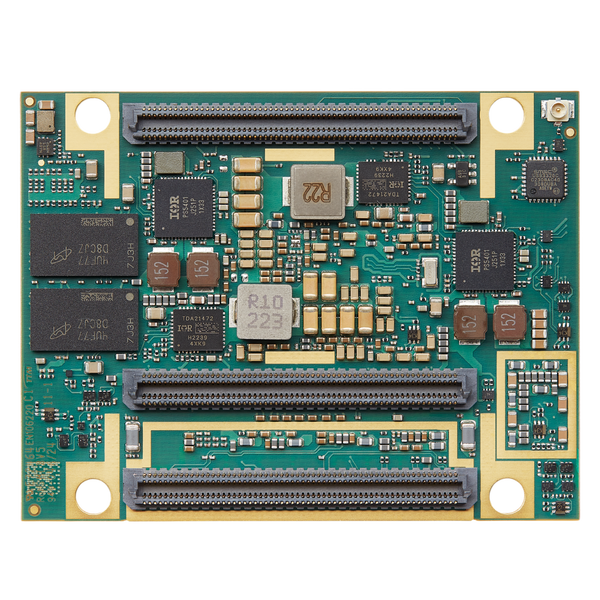

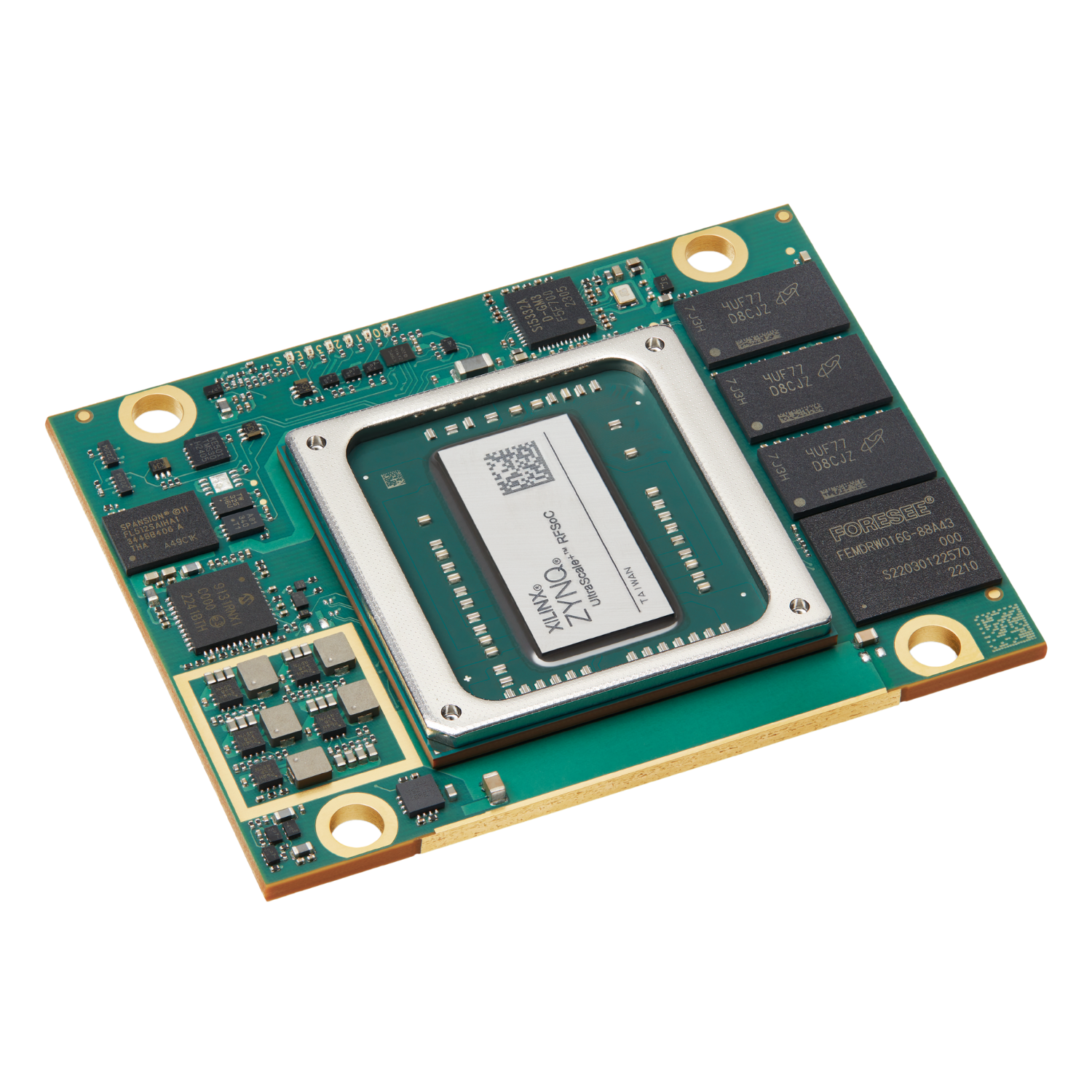

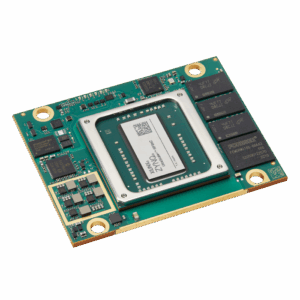

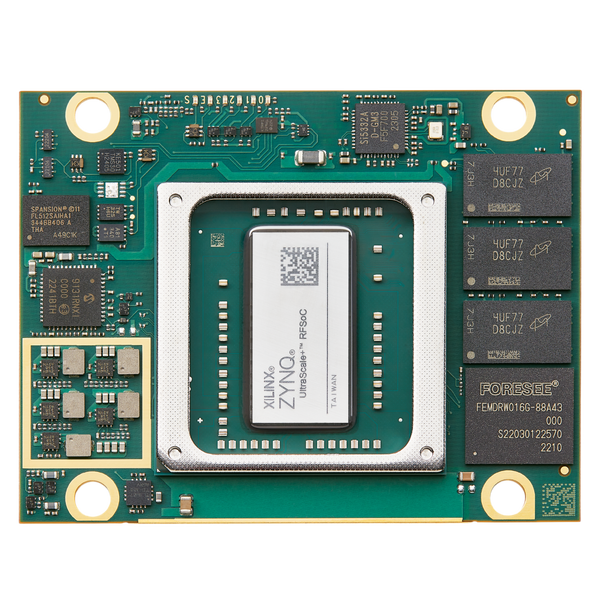

The Enclustra Andromeda XRU30 RFSoC module combines AMD’s Zynq Ultrascale+ RFSoC FPGA with a large count of RF-DACs and RF-ADCs integrated, enabling direct synthesis of RF signals and high-speed data processing. This eliminates the need for complex analog circuitry. The module offers versatile I/Os, supporting a wide range of standard interfaces. Equipped with ECC memory, eMMC, QSPI flash, integrated Gigabit Ethernet, and USB, the Andromeda XRU30 module is in the most compact form factor available today on the market. This makes it ideal for space-constrained applications while providing remarkable RF performance in an integrated, compact, and power-efficient package for next-generation RF systems.
A demonstration video at Embedded World 2024 is available on LinkedIn.
Highlights
- 8 x RF-ADC up to 5.9 GSPS and 8 x RF-DAC up to 10 GSPS integrated
- Built around AMD’s Zynq Ultrascale+ RFSoC FPGA
- Quad core Cortex A53 at 1.5GHz
- Available in industrial temperature range
- DDR4 SDRAM with Error Correction Code (ECC)
- Five ADM6-60 Samtec connectors with up to 162 user I/Os
- Linux BSP and tool chain available soon
- Powerful and compact FPGA board
- Offers Gigabit Ethernet, USB2.0 and USB3.0 interface
Benefits
- A complete and powerful RF processing system in a low-power, compact form factor
- Large, high bandwidth memory with up to 8GB of DDR4 ECC SDRAM
- High number of transceivers available
- High number of user I/Os and FPGA logic resources for powerful applications
- Support for Linux operating system
Features
- AMD’s Zynq Ultrascale+ RFSoC FPGA
- Quad core Cortex A53 at 1.5GHz
- RF: 8 x ADC @ 14 bit up to 5.9 GSPS | 8 x DAC @ 14 bit up to 10 GSPS
- 162 user I/Os:
- 104 HP (1-1.8V)
- 36 HD (1.2-3.3V)
- 22 MIO (1.8-3.3V)
- MGT: 8 PL GTY (32 Gbps) and 4 PS GTR (6 Gbps)
- APU: 4 x Cortex A53 @ 1.5 GHz
- 8 GB DDR4-2400 x72 ECC memory (PS)
- 16 GB eMMC flash (PS)
- 64 MB QSPI flash (PS)
- Gigabit Ethernet PHY
- USB 2.0 PHY (USB 3.0 using PS GTR)
- 12V single supply
- Small form factor Andromeda M 68 x 52 mm
Module Architecture
Product Selection Matrix
| Product Code | FPGA | Memory | Temp. Range | Status |
|---|---|---|---|---|
| AM-XRU30-65DR-2I-D4E | XCZU65DR-2FSVE1156I | 8 GB x72 ECC DDR4-2400 | -40 to +85C |
|
| AM-XRU30-67DR-2I-D4E | XCZU67DR-2FSVE1156I | 8 GB x72 ECC DDR4-2400 | -40 to +85C |
|
| AM-XRU30-47DR-2I-D4E | XCZU47DR-2FSVE1156I | 8 GB x72 ECC DDR4-2400 | -40 to +85C |
|
| AM-XRU30-42DR-1I-D3E | XCZU67DR-2FSVE1156I | 4 GB x72 ECC DDR4-2400 | -40 to +85C |
|
Key:
Mass Production
Sampling
Contact us
Minimum order quantities apply for custom module configurations. Please contact us.
Baseboard
| Base Board | Description |
|---|---|
| Andromeda ST9 |
Operating System Support
OS | Details | Availability |
|---|---|---|
 Linux | BSP support for: DDR4 SDRAM eMMC flash Quad SPI flash USB host Gigabit Ethernet U-boot bootloader Comprehensive user documentation | Coming soon |
Target Applications
- Edge computing
- Automation
- 5G wireless networks
- Data Center Compute
- Computer Vision and Video Processing
- Medical Image Processing
Information on the product may change, please check the manufacturers website and page for the most up to date information, see the link at the top right of this page.
